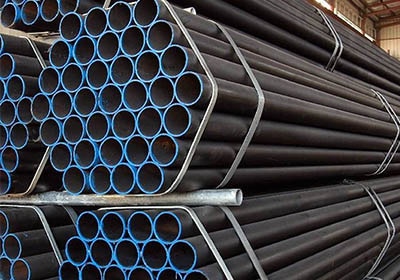

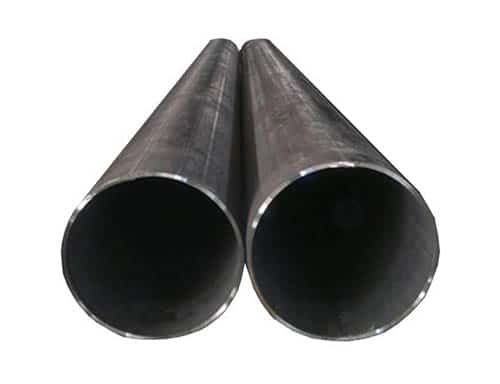

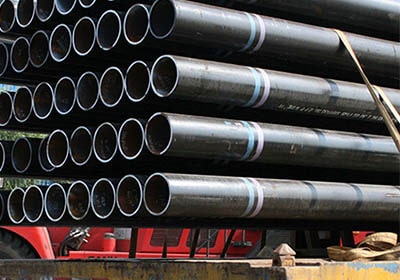

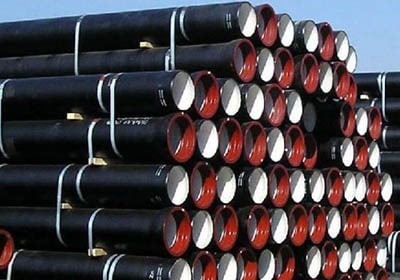

Carbon Steel IS1239 Part 1 Pipes

Mild steel IS1239 Part 1 pipe stockist, carbon steel IS1239 Part 1 pipe specification, IS 1239 carbon steel Part 1 pipe prices manufacturer, IS1239 Part 1 galvanized carbon steel pipes exporter, astm IS1239 Part 1 carbon steel pipes supplier in worldwide.

Carbon Steel IS1239 Part 1 Pipes
  • IS1239 CS Black ERW Pipes
  • CS IS1239 Part 1 ERW Pipes
  • IS1239 Part 1 Mild Steel Pipes
  • IS1239 CS Part 1 Pipes
  • Carbon Steel IS1239 Part 1 Pipes
  • CS IS 1239 Part 1 Pipe
  • Carbon Steel IS1239 Part 1 ERW Pipes
  • IS1239 Part 1 Carbon Piping
  • High Quality CS IS1239 Part 1 Pipe
  • IS1239 CS (Part 1) - 2004 Pipes
  • CS IS1239 Part 1 Welded Pipes
  • Carbon IS1239 Part 1 Welded Pipes

Carbon Steel IS1239 Welded Part 1 Pipes Stockiest in India, Carbon Steel IS1239 Part 1 Piping Supplier, Mild Steel IS1239 Part 1 Black ERW Pipes Dealers, carbon steel IS1239 Part 1 Square Pipes, Carbon Steel Electric Resistance Welded Pipes Distributors.

Norwich Steel & Engineering Co. is a well-known manufacturer of Carbon Steel IS1239 (PART 1) Pipes, which is widely admired for quality and long life. Our CS IS1239 (PART 1) Pipes are highly demanded in the market for their unique features like perfect finish and high quality. These Carbon Steel IS1239 (PART 1) Tubes is known for Accurate dimension, Maintenance free, Compact design, Tough, No wear and tear, High Durability, Superb finishing, High accuracy, Very long service life, Handles large pressure and variable temperature, and more. The fabrication of these CS IS1239 (PART 1) Pipe is done by potent utilization of manufacturing technology and superior grade raw material. Our Carbon Steel IS1239 Pipes is also Available in different surface finish patterns, Can be availed in different thickness, grades, width and lengths, Highly durable, Complete finish, Customization is available, and more.

CS IS1239 Part 1 Welded Pipe, Light (A-Class) IS1239 Part 1 CS Pipe Sizes, IS1239 Part 1 Welded Pipes, IS1239 Part 1 Carbon Steel ERW Pipes, Medium (B-Class) IS1239 Part 1 ERW Pipes, Carbon Steel IS1239 Heavy C-Class Part 1 Pipes Supplier In India.

CS IS1239 Part 1 Piping

Carbon Steel IS1239 Part 1 Pipes

Carbon IS1239 Part 1 Pipe

CS IS1239 Part 1 Pipe

Being a quality oriented organization; we are able to offer these CS IS1239 Pipes, which are used to control the flow and pressure level of steam and heated water vapor. In addition to this, the range of high quality Carbon Steel IS1239 (PART 1) Pipes offered by us is highly regarded for its long life span and rust resistance. Our CS IS1239 (PART 1) Pipe are available in a number of variants are idyllically utilized in the pipeline fittings of oil, gas and petrochemical industries. These Carbon Steel IS1239 Tubes is available in cold rolled / hot rolled construction finishes.





Carbon Steel IS1239 Part 1 Pipes Quick Details

  • Company Name: Norwich Steel & Engineering Co.
  • Country/Region: India
  • FOB Price: US $1500-5000 / Metric Ton
  • Port: Nhava Sheva Port Mumbai
  • Main Products: IS1239 Part 1 Pipes & Tubes, Welded Pipes & Tubes, Stainless Steel Pipe and Tubes, API 5L Pipes
  • No.of Employees: 20 – 40 People
  • Year Established: 1999
  • Certification: ISO 9001, ISO 14001 & OHSAS 18001



Pipe Type:

  • Bevelled End (BW)
  • Plain End Pipe (PE)
Sr No DESCRIPTION GRADE SIZE RANGE
A IS1239 Part 1 ERW / WELDED PIPES
1 Carbon Steel IS1239 Part 1 ERW Pipes IS1239 Part 1 1/2″ – 24″
2 Carbon Steel IS1239 Part 1 Black & Galvanized Pipes IS1239 Part 1 1/2″ – 16″



IS 1239 Mild Steel Dimensions Confirming to IS 1239 (Part – I) – 2004, Equivalent to BS – 1387 / 1985

Nominal Bore Outside Diameter Light (A-Class) Thickness Weight Medium (B-Class) Thickness Weight Heavy (C-Class) Thickness Weight
Inch mm Inch mm mm kg/mtr mm kg/mtr mm kg/mtr
1/8″ 3 mm 0.406 10.32 1.80 0.361 2.00 2.65 0.493
1/4″ 6 mm 0.532 13.49 1.80 0.517 2.35 0.407 2.90 0.769
3/8″ 10 mm 0.872 17.10 1.80 0.674 2.35 0.852 2.90 1.02
1/2″ 15 mm 0.844 21.43 2.00 0.952 2.65 1.122 3.25 1.45
3/4″ 20 mm 1.094 27.20 2.35 1.410 2.65 1.580 3.25 1.90
1″ 25 mm 1.312 33.80 2.65 2.010 3.25 2.440 4.05 2.97
1.1/4″ 32 mm 1.656 42.90 2.65 2.580 3.25 3.140 4.05 3.84
1.1/2″ 40 mm 1.906 48.40 2.90 3.250 3.25 3.610 4.05 4.43
2″ 50 mm 2.375 60.30 2.90 4.110 3.65 5.100 4.47 6.17
2.1/2″ 65 mm 3.004 76.20 3.25 5.840 3.65 6.610 4.47 7.90
3″ 80 mm 3.500 88.90 3.25 6.810 4.05 8.470 4.85 10.1
4″ 100 mm 4.500 114.30 3.65 9.890 4.50 12.10 5.40 14.4
5″ 125 mm 5.500 139.70 – – 4.85 16.20 5.40 17.8
6″ 150 mm 6.500 165.10 – – 4.85 19.20 5.40 21.2



NOTE : OTHER SIZES AND GRADES ARE AVAILABLE UPON REQUEST



Carbon Steel IS1239 Part 1 Pipes Specifications

Carbon Steel IS1239 Part 1 Pipe are available in different grades and standards. Some of the standard features these are made available in include
Dimensions : ASTM, ASME and API
Thickness : 3-12mm
End : Plain End, Beveled End, Treaded
Length : Min 3 Meters, Max18 Meters, or according to customer’s requirement
Schedules : SCH 40, SCH 80, SCH 160, SCH XS, SCH XXS, All Schedules
