Stainless Steel 316Ti Forged Socketweld Fitting, SS 316Ti Forged Threaded Fittings Exporter

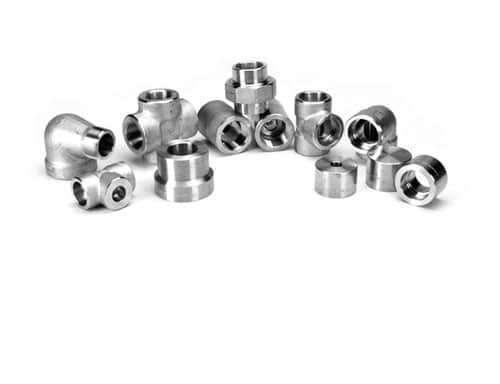

Stainless Steel 316Ti Forged Fittings

Stainless Steel 316Ti Socketweld Fitting

SS 316Ti Socket Weld 90deg Elbow
SS DIN 1.4571 Forged Elbow
Stainless Steel 316Ti Forged Threaded Tee
SS 316Ti Forged Socketweld Union
Stainless Steel 316Ti Threaded Pipe Nipple
SS 316Ti Forged Socketweld Fitting

ASTM A182 SS 316Ti Socket Weld Elbow
Stainless Steel 316Ti Socket Weld Couplings
SS 316Ti Forged Fittings
Stainless Steel 316Ti Socketweld Fitting
SS 316Ti Threaded Fittings
Stainless Steel 316Ti Forged Bushing

Stainless Steel 316Ti Forged Socket weld Equal Tee, ANSI B 16.11 SS 316Ti Forged Threaded Fittings, SS 316Ti Forged Fitting, SS 316Ti Forged Screwed Cap, Stainless Steel 316Ti Forged Fittings, ASTM A182 SS 316Ti Forged Screwed Equal Tee Exporter, SS UNS S31635 Forged Fitting Exporter in Mumbai.

Benefits of using these 316Ti Stainless Steel Forged Socket Weld Fittings include increased carbon content heat resistant qualities. The corrosion resistance of our 316Ti SS Forged Threaded Fittings is comparable to Alloy316 / Alloy 316L and is superior to Alloy 304 / Alloy 304L in moderately corrosive environments. These SS 316Ti Forged Socket Weld Elbow are molybdenum-bearing austenitic stainless steel which are more resistant to general corrosion and pitting / crevice corrosion than the conventional chromium nickel austenitic stainless steel such as Type 304. Our SS 316Ti Forged Threaded Elbow is often used in Pharmaceutical and textile industries, Heat exchangers, Condensers, evaporators and tanks. Corrosion Resistance of these SS 316Ti Forged Socket Weld Tee is excellent in a range of atmospheric environments and many corrosive media - generally more resistant than 304. Our Stainless Steel 316Ti Forged Threaded Tee is often used in Oil & petroleum refining equipment, Aerospace Structures, Food processing equipment, etc.

SS 316Ti Socketweld Forged Fittings, Stainless Steel DIN. 1.4571 Forged Fitting, Stainless Steel 316Ti Threaded Forged Fitting, Stainless Steel 316Ti Threaded 45 Deg Forged Elbow, SS 316Ti Threaded Coupling Forged Fittings, SS 316Ti Forged End Pipe Cap, ASME 16.11 Stainless Steel 316Ti Full Coupling Supplier In India.

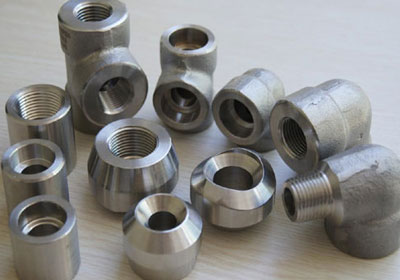

316Ti Steel Forged Threaded Fitting

SS 316Ti Forged Socketweld Fittings

These Stainless Steel 316Ti Forged Socket Weld Fittings also has outstanding welding characteristics, where post-weld annealing is not required when welding thin sections. The fact that it is negligibly responsive to magnetic fields means that our SS 316Ti Forged Threaded Fittings can be used in applications where a non - magnetic metal is required. We are a known exporter of these SS 316Ti Forged Fittings, which has improved wear resistance and fatigue strength.

Stainless Steel Forged Fittings Quick Details

Company Name: Norwich Steel & Engineering Co.
Country/Region: India
FOB Price: US $1-5 / Piece (FOB Price)
Port: Nhava Sheva Port Mumbai
Main Products: SS 316Ti Forged Fitting
No.of Employees: 20 – 40 People
Year Established: 1999
Certification: ISO 9001, ISO 14001 & OHSAS 18001

Equivalent Grades for 316Ti Stainless Steel Threaded Forged Fitting

Grade	UNS No	Old British		Euronorm		GOST	Japanese JIS
		BS	En	No	AFNOR
316Ti	S31635	320S31	X6CrNiMoTi17-12-2	1.4571	Z6CNDT17‐12	08Ch17N13M2T	SUS 316Ti

316Ti SS Socketweld Forged Fittings Chemical Composition

Grade		C	Mn	Si	P	S	Cr	Mo	Ni	N
316Ti	min.	–	–	–	–	–	16.0	2.00	10.0	–
316Ti	max.	0.08	2.0	0.75	0.045	0.030	18.0	3.00	14.0	–

SS 316Ti Forged Fitting Mechanical Properties

Grade	Tensile Strength (MPa) min	Yield Strength 0.2% Proof (MPa) min	Elongation (% in 50mm) min	Hardness
				Rockwell B (HR B) max	Brinell (HB) max
316Ti	515	205	35	75	205

NOTE : OTHER SIZES AND GRADES ARE AVAILABLE UPON REQUEST

Stainless Steel 316Ti Threaded Forged Fitting Specifications

SS 316Ti Socketweld Forged Fittings are available in different grades and standards. Some of the standard features these are made available in include
Specifications : ASTM A182 / ASME SA182
Standard : ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Size : 1/8” NB to 4” NB
Pressure Class : 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS
Type : Socketweld Fittings, Screwed-Threaded Fittings
