Stainless Steel 321/321H Forged Fittings

SS 321 Socketweld Forged Union, ASME / ANSI B16.11 Stainless Steel 321 Forged Fittings, Supplier of Stainless Steel 321/321H Forged Cross, ASME SA182 SS 321 Reducing Couplings manufacturer, SS 321H Threaded 90deg Elbow Exporter, 3000 lb Stainless Steel Forged Fittings exporter in worldwide.

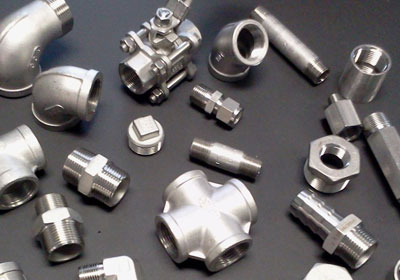

Stainless Steel 321 Socketweld Fitting
  • Stainless Steel 321 Threaded Pipe Nipple
  • SS 321H Forged Socketweld Fitting
  • SS 321/321H Socket Weld 90deg Elbow
  • SS WERKSTOFF NR. 1.4878 Elbow
  • Stainless Steel 321 Forged Threaded Tee
  • SS 321H Forged Socketweld Union
  • Stainless Steel 321H Socketweld Fitting
  • SS 321 Threaded Fittings
  • Stainless Steel 321/321H Forged Bushing
  • ASTM A182 SS 321 Socket Weld Elbow
  • Stainless Steel 321H Socket Weld Couplings
  • SS 321 Forged Fittings

3000 lb Stainless Steel Forged Fittings, ASME SA182 SS 321 Reducing Couplings manufacturer, SS 321H Threaded 90deg Elbow Exporter, ASME / ANSI B16.11 Stainless Steel 321 Forged Fittings, Supplier of Stainless Steel 321H Forged Cross, SS 321/321H Socketweld Forged Union Exporter in Mumbai.

These 321 Stainless Steel Forged Socket Weld Fitting offers higher creep and stress rupture properties than Alloy 304 and, particularly, Alloy 304L, which might also be considered for exposures where sensitization and inter - granular corrosion are concerns. Our 321 Stainless Steel Forged Threaded Fittingsis used extensively for applications where the addition of titanium and its stabilizing effect as a carbide forming element allows it to be welded and/or used within the carbide precipitation range 430 Degree C – 870 Degree C without the risk of inter - granular corrosion. In order to provide optimum resistance to inter - granular corrosion in these SS 321 Forged Socket Weld Fittingsand to polythionic acid stress corrosion cracking in service temperatures at 1500 Degree F – 1650 Degree F, an air cool may be used. Our Stainless Steel 321 Forged Threaded Fittings has similar corrosion behavior to Type 304 with the exception of improved inter - granular corrosion resistance due to the titanium addition for stabilization.

SS WERKSTOFF NR. 1.4541 Threaded Coupling Forged Fittings, SS 321/321H Socketweld Forged Fittings, Stainless Steel 321 Threaded Forged Fitting, SS 321H Threaded 45 Deg Forged Elbow, SS 321 Forged End Pipe Cap, ASME 16.11 Stainless Steel 321/321H Full Coupling Supplier In India.

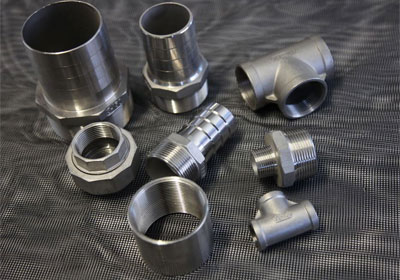

321 Steel Forged Threaded Fitting

321 Steel Forged Threaded Fitting

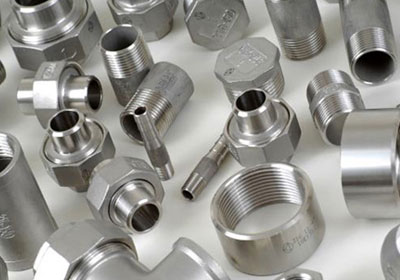

SS 321H Forged Socketweld Fittings

SS 321H Forged Socketweld Fittings

This Stainless Steel 321H Forged Fittings has a maximum use temperature of 1500 Degree F (816 Degree C) for code applications like Type 304, whereas Type 304L is limited to 800 Degree F (426 Degree C). Like other austenitic grades, our Stainless Steel 321 Forged Fitting have excellent forming and welding characteristics, are readily brake or roll formed and have outstanding welding characteristics. We are a known stockist of SS 321 / 321H Forged Fittings, which is not subject to weld decay (inter - granular corrosion) when exposed to mildly corrosive environments.





Stainless Steel Forged Fittings Quick Details

  • Company Name: Norwich Steel & Engineering Co.
  • Country/Region: India
  • FOB Price: US $1-5 / Piece (FOB Price)
  • Port: Nhava Sheva Port Mumbai
  • Main Products: SS 321/321H Forged Fitting
  • No.of Employees: 20 – 40 People
  • Year Established: 1999
  • Certification: ISO 9001, ISO 14001 & OHSAS 18001



Equivalent Grades for 321/321H Stainless Steel Threaded Fittings

Grade North America France European Japan Russia European Italy Austria Sweden
UNS AFNOR W.N. JIS GOST EN UNI ONORM SIS
SS 321 S32100 – 1.4541 SUS 321 – X6CrNiTi18-10 – – –



321/321H SS Socketweld Fitting Chemical Composition

Grade C Mn Si P S Cr N Ni Tie
SS TP 321 0.08 max 2.0 max 1.0 max 0.045 max 0.030 max 17.00 – 19.00 0.10 max 9.00 – 12.00 5(C+N) – 0.70 max



Stainless Steel 321/321H Forged Fittings Mechanical Properties

Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
8.0 g/cm3 1457 °C (2650 °F) Psi – 75000 , MPa – 515 Psi – 30000 , MPa – 205 35 %



NOTE : OTHER SIZES AND GRADES ARE AVAILABLE UPON REQUEST



Stainless Steel 321/321H Threaded Forged Fitting Specifications

SS 321/321H Socketweld Forged Fittings are available in different grades and standards. Some of the standard features these are made available in include
Specifications : ASTM A182 / ASME SA182
Standard : ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Size : 1/8” NB to 4” NB
Pressure Class : 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS
Type : Socketweld Fittings, Screwed-Threaded Fittings
